TUV MCS IEC CE APPROVED 12V 100Watt Monocrystalline Solar Panel with 36 Cells In Series

Name: TUV MCS IEC CE APPROVED 12V 100Watt Monocrystalline Solar Panel with 36 Cells In Series
Brand: SHINE OR OEM
Price: 1 USD

Wholesale TUV MCS IEC CE APPROVED 12V 100Watt Monocrystalline Solar Panel with 36 Cells In Series from china suppliers

Brand Name : SHINE OR OEM

Model Number : SN-M100

Certification : CE, LVD, TUV, IEC, ROSH, SGS

Place of Origin : CHINA

MOQ : 1

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 20000 pcs per month

Delivery Time : 15 days

Packaging Details : single box or 25 pieces per pallet

Max power : 100Watt

Voltage : 18V vmp

Current : 5.56A

Efficiency : 15.56%

SIze : 1195x541x30mm

Junction box : IP65

Contact Now

TUV MCS IEC CE APPROVED 12V 100Watt Monocrystalline Solar Panel with 36 Cells In Series

Specification of this monocrystalline solar panel

100Watt Monocrystalline Solar Panel		Mechanical Characteristics
Characteristics	SN-M100	Power Tolerance	±3 %
Maximum Power(Pmax)	100Wp	Maximum Series Fuse Rating	15A
Optimum Operating Voltage/Vmp	18.0V	Maximum System Voltage	1000V DC
Optimum Operating Current/Imp	5.56A	Operating Module Temperature	-40°C to +80°C
Open Circuit Voltage /Voc	21.6V	Frame Material	Clear Anodized aluminum Frame
Short Circuit Current /Isc	5.76A	Thickness of glass	3.2mm tempered glass
Module Efficiency	15.560%	Frame	Anodized aluminum alloy
Weight	7.2Kg	Laminating material	EVA
Numbers of cells	36(4*9)	Backsheet material	TPT
Cell dimension	125*125mm	Junction box	Ip65
Dimensions(mm)	119554130
Standard test condition	Irradiance 1000W/m²,Module temperature 25℃, AM=1.5

Product Detail Show

GLASS

>Antireflective glass
>Translucency of normal luminance is increased by 2%
>Module efficiency is increased by 2%
>Self-cleaning function
>Service life is as long as 25 years(30 years optional)

TUV MCS IEC CE APPROVED 12V 100Watt Monocrystalline Solar Panel with 36 Cells In Series

FRAME

>Conventional frame
>Silver or black frames are optional
>Boost bearing capability and prolong service life
>Serra-clip design tensile strength
>Seal-lip designglue injection

SOLAR CELL

>High Efficiency PV Cells
>Appearance Consistency
>Color sorting ensure consistent appearance on each module
>Anti-PID

JUNCTION BOX

>Conventional standalone edition and engineering custom edition
>Quality diode ensures module running safety
>IP65 Protection level
>Heat dissipation
>Long service life

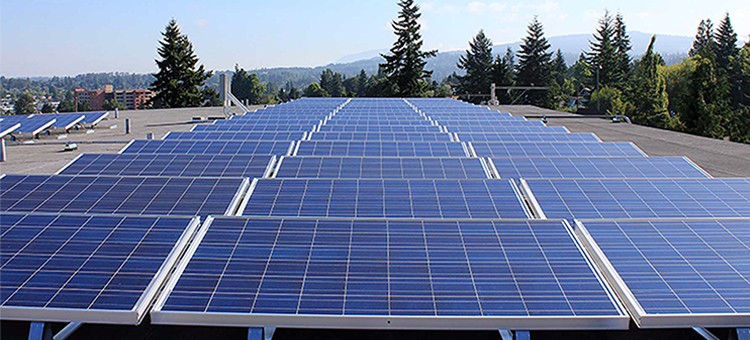

Applications
