Customized Sunpower Portable Folding Solar Panel Kits 24v 36 Cells Antireflective Glass

Product Categories
Shenzhen Shine Solar Co., Ltd.
Contact Now

Customized Sunpower Portable Folding Solar Panel Kits 24v 36 Cells Antireflective Glass

Brand Name : SHINE OR OEM

Model Number : SN-SC40W

Certification : CE, RoHS, SGS, LVD

Place of Origin : China

MOQ : 1

Price : negiotation

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 10000 pcs per month

Delivery Time : 5-8 days

Packaging Details : 10 pcs per carton and then on pallet.

Front material : High Efficiency SunPower cells

Dimension Open : 840*295*5MM

Weight : 1.1KGS

Color : White or Black

Junction box : IP67 with Diodes

Connectors : 90cm with MC4 connectors

Voltage : 19.8V vmp

Maximum Power Current (Imp) : 2.02A

Contact Now

Customized sunpower black portable 24v 36cells foldable solar panel kits to Europe

Glass

> Antireflective glass
> Translucency of normal luminance is increased by 2%
> Module efficiency is increased by 2%
> Self-cleaning function
> Service life is as long as 25 years (30 years optional)

Junction box

> Conventional standalone edition and engineering custom edition
> Quality diode ensures module running safety
> IP67 protection level
> Heat dissipation
> Long service life

That multifunctional portable solar charger, High efficiency, we have 2x40w and 3x40W two items, provide free power for charging 12V batteries, for example in vehicles and boats, motorhome , caravan, camping, narrow boat, yacht etc, or any other systems with a 12V battery or battery bank

Cell brand sunpower and pet
Power tolerance ±5%
Peak power(WP) 40W
Voltage at Pmax(Vmp) 19.8V
Current at Pmax(lmp) 2.02A
Open circuit voltaage(Voc) 23.76V
Short circuit current(lsc) 2.2A
Operating Temperature -25℃ +65℃
Relative Humidity 0~100%
Dimension Open 840*295*5MM
Dimension when folded 280*295*40MM
Net Weight(kg) 1.1kg

Other model and wattage:

MODEL
PM/w
VOC/v
ISC/A
VMP/V
IMP/A
Cell/Array
N/W(kg)
Expand Size(mm)
Folded Size(mm)
SN-SC40W
40
23.76
2.2
19.8
2.02
(2*6)*3
1.1
840*295*5
280*295*40
SN-SC60W
60
23.76
3.3
19.8
3.03
(2*6)*3
1.3
840*400*5
280*400*25
SN-SC80W
80
24.80
4.35
20.2
3.96
(2*6)*4
1.6
1160*420*5
290*420*30
SN-SC110W
110
21.6
6.52
18
6.1
(2*4)*4
2.2
1160*530*5
290*530*30
SN-SC130W
130
27.84
5.99
23.2
5.6
(2*4)*5
2.6
1480*530*5
290*530*40
SN-SC160W
160
33.4
6.27
27.8
5.7
(2*4)*6
3.6
1720*530*5
295*530*50

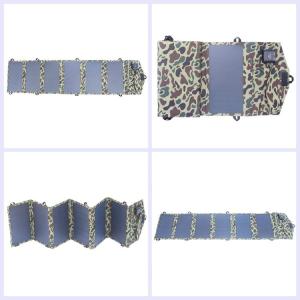

Pictures

Customized Sunpower Portable Folding Solar Panel Kits 24v 36 Cells Antireflective Glass

Customized Sunpower Portable Folding Solar Panel Kits 24v 36 Cells Antireflective Glass

Our Services

Pack and Service:

1.usually packed in the cartons and pallets.

2. Individual package is acceptable.

Deliveried by air, sea,express are acceptablelly packed in the cartons and pallets.


FAQ

FAQ:

1.Question:

Would this keep fully charged a 100Ah 12v battery used to power an led cricket scoreboard with 22 digits whilst in use?

Answer:

Good afternoon Jonwillie,
teorically yes, it could keep 100Ah battery fully charged.
But you must consider the sun and the consumption of your scoreboard.
In a sunny day, solar panel will supply 5 Ah by hour. It means at best you will load 30 Ah - 6 hours x 5 Ah - in your battery; it is about 36% of its charge.
If your scoreboard consume usually no more than 1/3 of battery, in a sunny day you will be able to keep battery fully charged.

2.Question:

how do you work out what amp controller you need for motorhome

Answer:

The correct controller was supplied with the panel, whole set up appears to work as it should, will also keep cab battery charged

3.Question:

Does it require additional brackets down the length of the panel. I only have 540mm width available.

Answer:

No additional brackets are required.

4.Question:

Would this keep a 12volt Campervan fridge running?

Answer:

I have a Waeco 12v fridge in my van and it runs it OK even sitting for 5 days without starting up the engine
